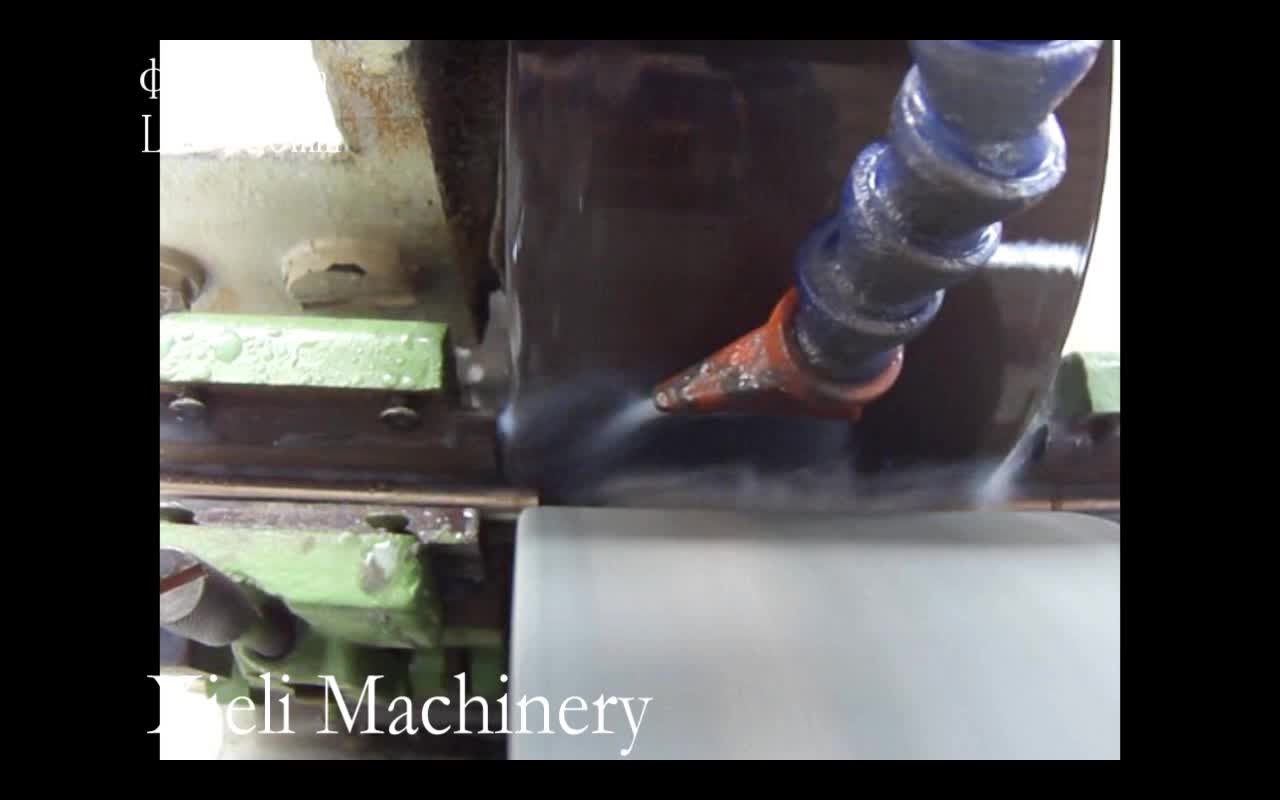

CNC high precision centerless grinding machine factory

WX-M2-60 Machine features:

*The width of grinding wheel guide wheel is 125mm, with larger grinding amount and better stabilit.

*The layout of the machine adopts the single - sided movement mode of regulating wheel frame.

* The sand wheel shaft adopts overhang structure, so it is convenient to replace the grinding wheel.

*Guide wheel shaft adopts overhang structure, easy to replace guide wheel.

* The regulating wheel adopts frequency conversion to adjust the speed, which can realize the feed speed of the workpiece with different diameter.

* The machine tool is equipped with cutting mechanism, which can realize grinding of step surface and cone surface.

* The machine tool can be equipped with a long workpiece through grinding bracket.

* The machine can be matched with a variety of automatic feeding equipment and automatic manipulator.

Main purpose and scope of application:

* In addition to grinding with grinding wheel, PVA polishing wheel can be used to highlight and wet polish the workpiec

* It is mainly used for grinding the cylindrical surface of various ring and shaft parts, and for semi-automatic and automatic cutting grinding of various stepped, tapered and cylindrical rotating surfaces.

Main technical parameters

* Longitudinal feed grinding.

1,Diameter of grinding workpiece 0.8–60mm

2,Maximum grinding length 1000mm

*Cross feed grinding

1,Diameter of grinding workpiece 2–60mm

2,Maximum grinding length 125mm

*Specification of grinding wheel P350*125*127

*Specification of guide wheel P250*125*75

*Speed of grinding wheel 2000r/min

*Speed of guide wheel Stepless5-240 r/min

*The turning Angle of the regulating wheel

1,In the vertical plane -2° -5°

2,Horizontal plane -10°-10°

*Grinding accuracy of standard test bar

(ø 20 × 75 )
1, Roundness 2 μ m

2, Cylindricity 3 μ m

3, Roughness Ra0.2 μ m

*Grinding feed (Feed rate of each grid of dial 0.002mm)

*Cooling pump flow 25L/min

*Equipment power 5KW

1,Motor for grinding wheel 4.0kw

2,Motor of guide wheel 0.75kw

3,Motor of cooling pump 0.09kw

*Machine tool lead-in power supply Three phase four wire 380V 50Hz

*Machine dimension 1300*960*1300mm

*Machine tool weight 1000kg(about)

Xingtai Xieli Machinery Manufacturing Co., Ltd. specializes in manufacturing large / small
diameter circular tube polishers, small centerless grinders, large diameter external circle
polishers, centerless polishers, square tube polishers, hexagon polishers, flat polishers, ball
polishers, belt polishers, special-shaped parts polishers and other grinding and polishing
equipment. The company is located in North China's machinery manufacturing hometown, Hebei
Xingtai Fuyang Economic and Technological Development Zone.

The company has been specialized in the research, development, manufacturing and sales of
the equipment used in the polishing and grinding industries for many years. It is a solid
enterprise with strong strength. Over the years, with high-quality products, reasonable prices,
innovative business methods and perfect after-sales services, it has won the praise of users in
more than 20 provinces, cities and regions. At the beginning of its establishment, the company
started with a high starting point and high quality Our company always adheres to the concept of
excellent quality and first-class service. We sincerely welcome new and old users at home and
abroad to cooperate, visit, guide and negotiate business.

Xieli tenet: reputation first, user first, quality first, service first

Xieli concept: survive by quality and promote development by science and technology.
